Product details

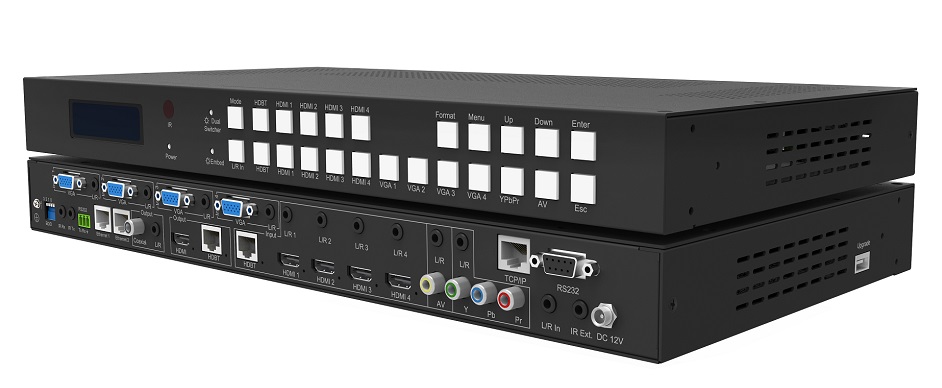

CV1102-HTS

• 11x2 multi-format matrix switcher
• 1 HDMI output and 1 HDBaseT output
• Splitter and switcher mode selectable
• Audio embedding and de-embedding
• Front panel, IR, RS232 and TCP/IP control

CV1102-HTS

• 11x2 multi-format matrix switcher
• 1 HDMI output and 1 HDBaseT output
• Splitter and switcher mode selectable
• Audio embedding and de-embedding
• Front panel, IR, RS232 and TCP/IP control
  • CV1102-HTS is a HDMI,VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 11:1x2 multiple splitter and 4x1 &11x1 dual switcher. This presentation switcher also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI output using the front-panel push buttons, IR remote control or RS-232 interface.

    Features:
    • Dual mode selectable, 1x2 splitter mode and dual switcher mode
    • Bypass and scaled formatted output selectable
    • Audio embedder and audio extractor
    • Front-panel LCD display for status feedback
    • Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP control
    • Easy installation with rack-mounting ears
    • HDCP compliant

  • • Bandwidth:10.2Gbps

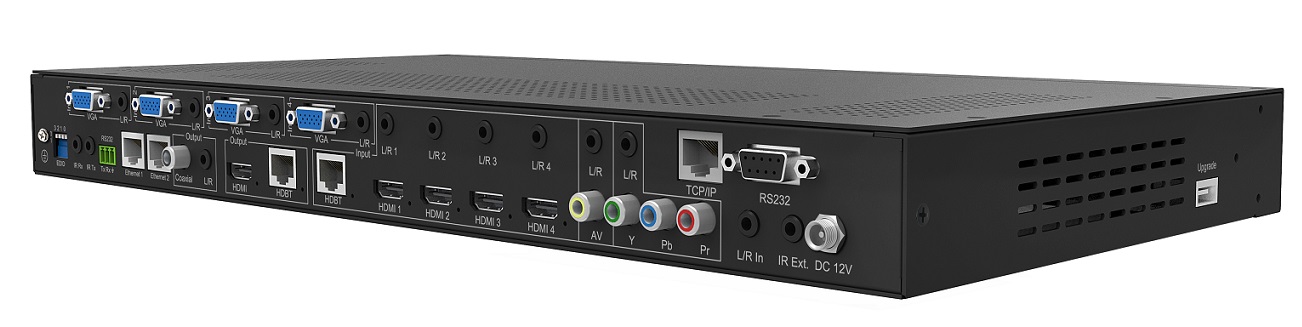

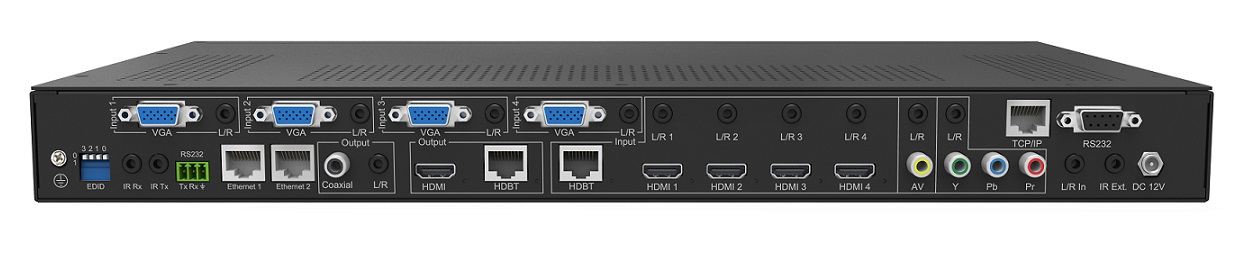

    • Video Input Connectors: 4x HDMI Type A, 4x VGA, 1x RJ45 ,1xYPbPr,1x AV
    • Video Output Connectors:1x HDMI Type A, 1x RJ45
    • Audio Input Connectors: 11x 3.5mm stereo jack
    • Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF)
    • RS-232 serial port: 1x DB 9 connector,1x 3 phoenix terminal
    • TCP/IP: 1x RJ45
    • IR Input ports: 2x 3.5mm stereo jack
    • IR Output ports: 1x 3.5mm mono jack
    • Dimensions (W x H x D): 438mm x 225mm x 44mm , without feet
    • Shipping Weight: 1.2Kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 1x 12V/5A DC
