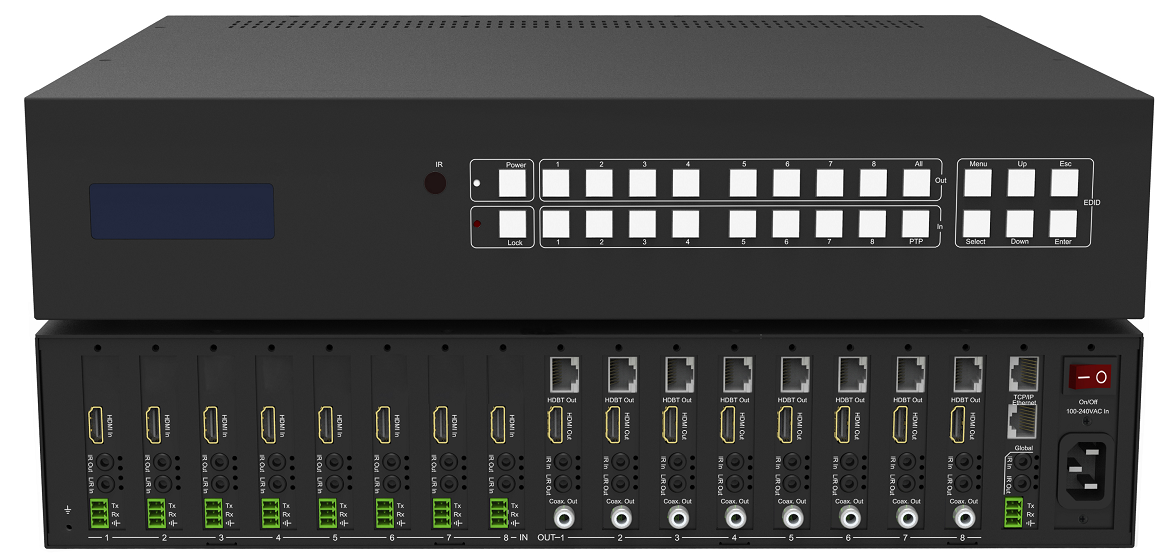

  • MT0808-FAV

    HDCP2.2, 4K Modular 2U 8x8 HDBaseT Matrix

Contact Us

TEL : + 86 0755-29810184

FAX : + 86 0755-27653711

E-Mail : sales@tonlyware.com

Product details

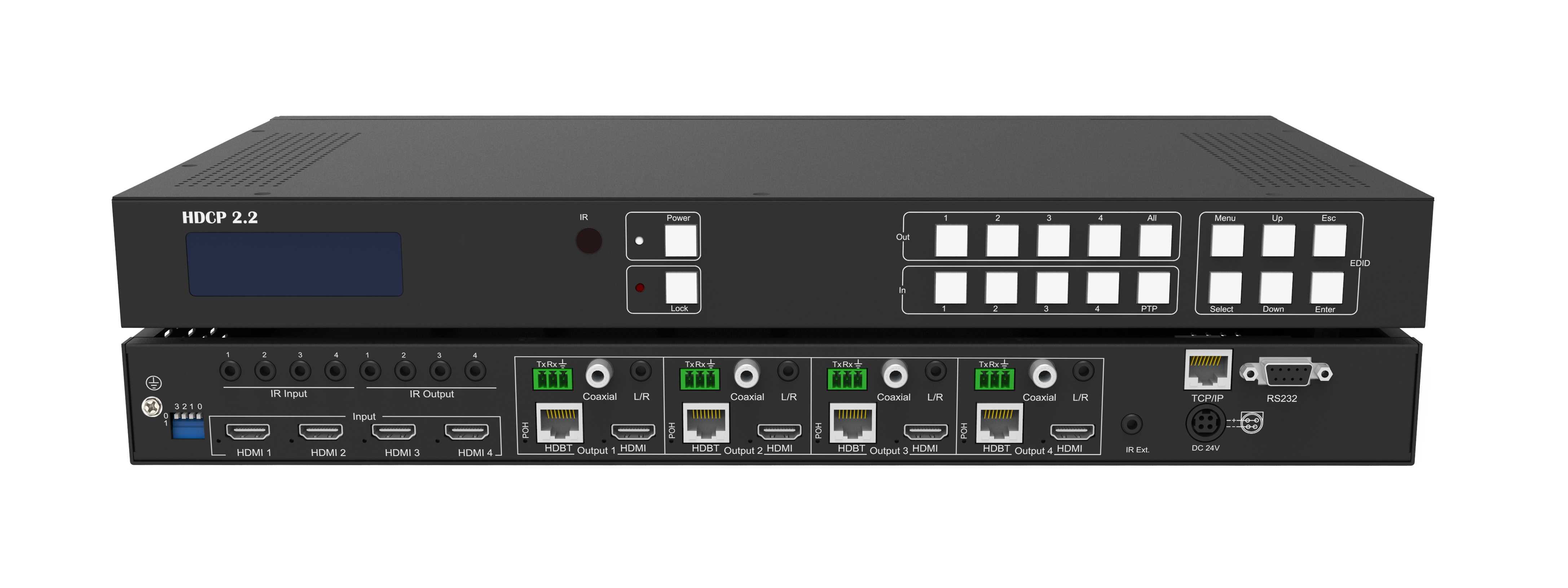

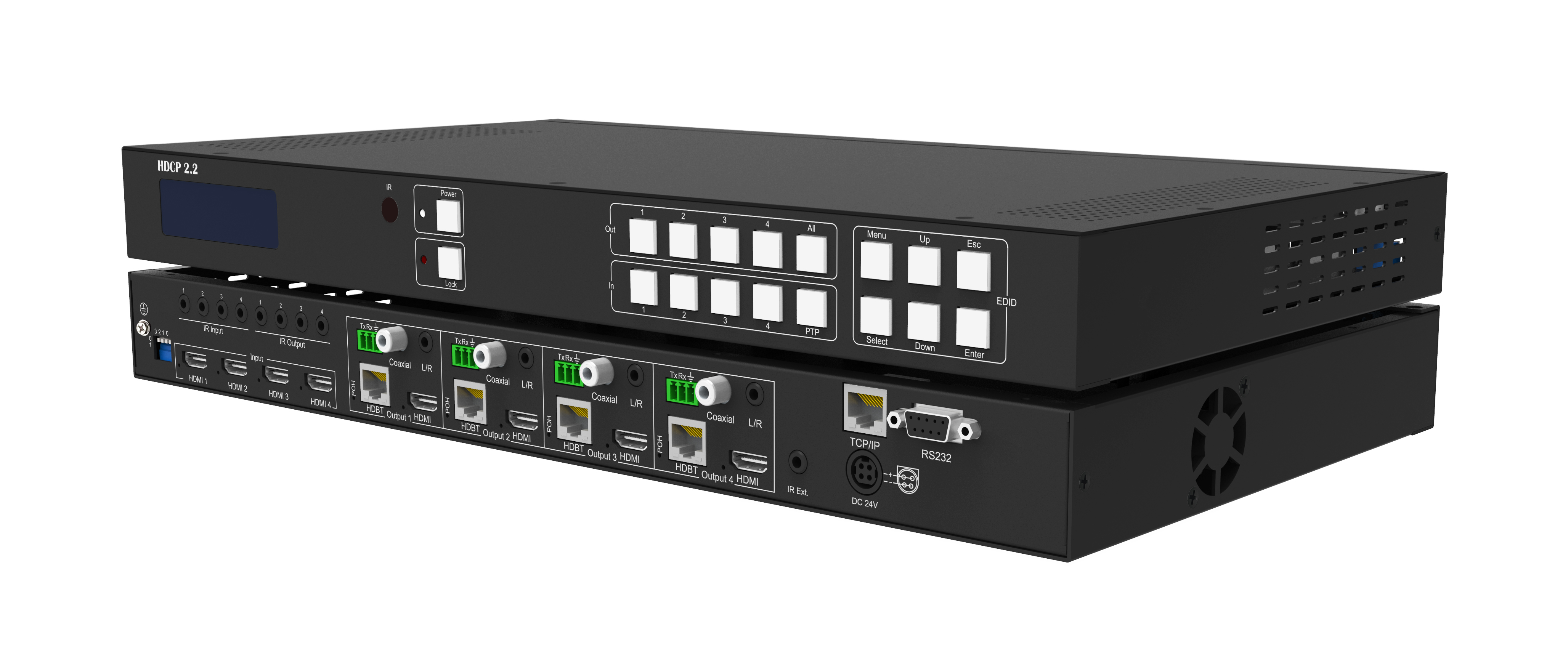

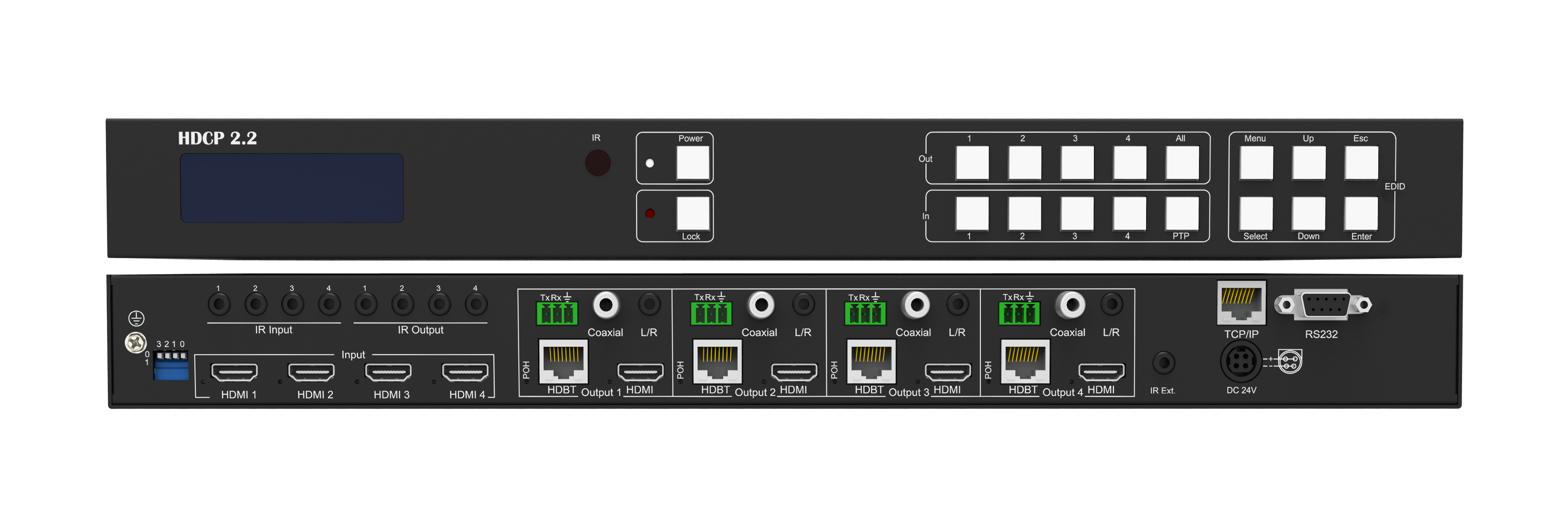

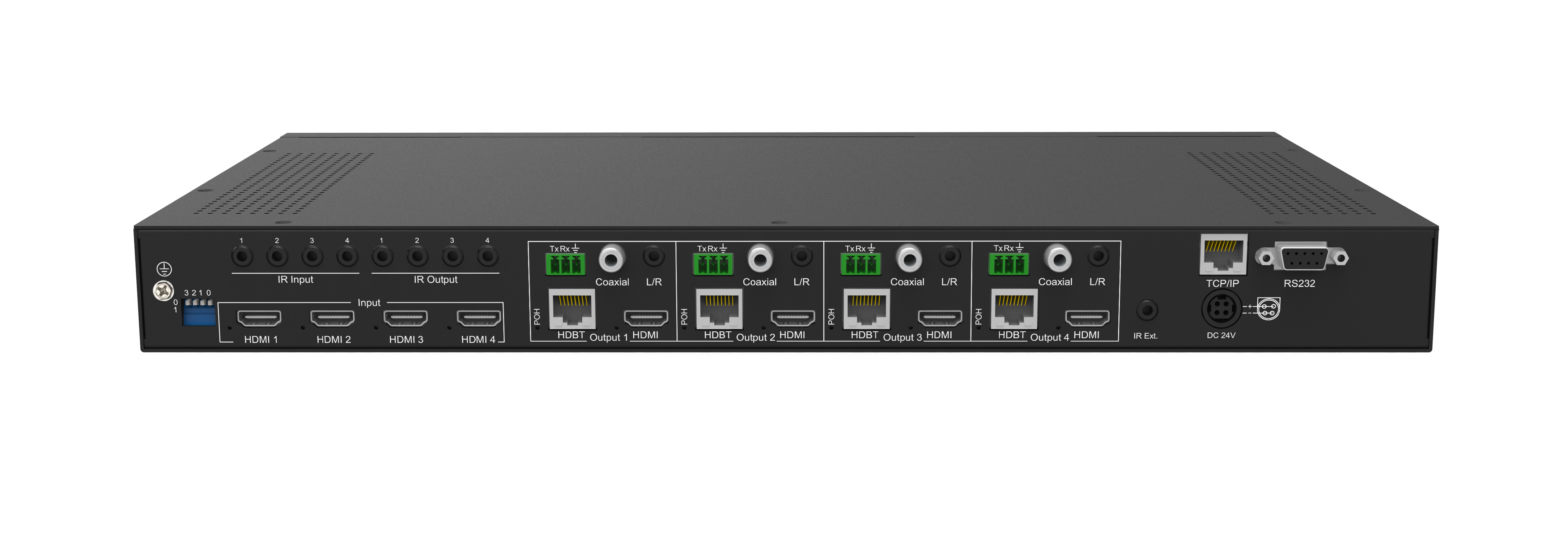

MT0404-LP5

• 4 HDMI inputs 4 HDBaseT and 4 HDMI mirrored output matrix switcher
• POH supported, not power supplies for receivers
• Analogue audio and digital audio break out
• Volume control for analogue audio out
• RS232 and TCP/IP control
• EDID management
• HDCP2.2

MT0404-LP5

• 4 HDMI inputs 4 HDBaseT and 4 HDMI mirrored output matrix switcher
• POH supported, not power supplies for receivers
• Analogue audio and digital audio break out
• Volume control for analogue audio out
• RS232 and TCP/IP control
• EDID management
• HDCP2.2

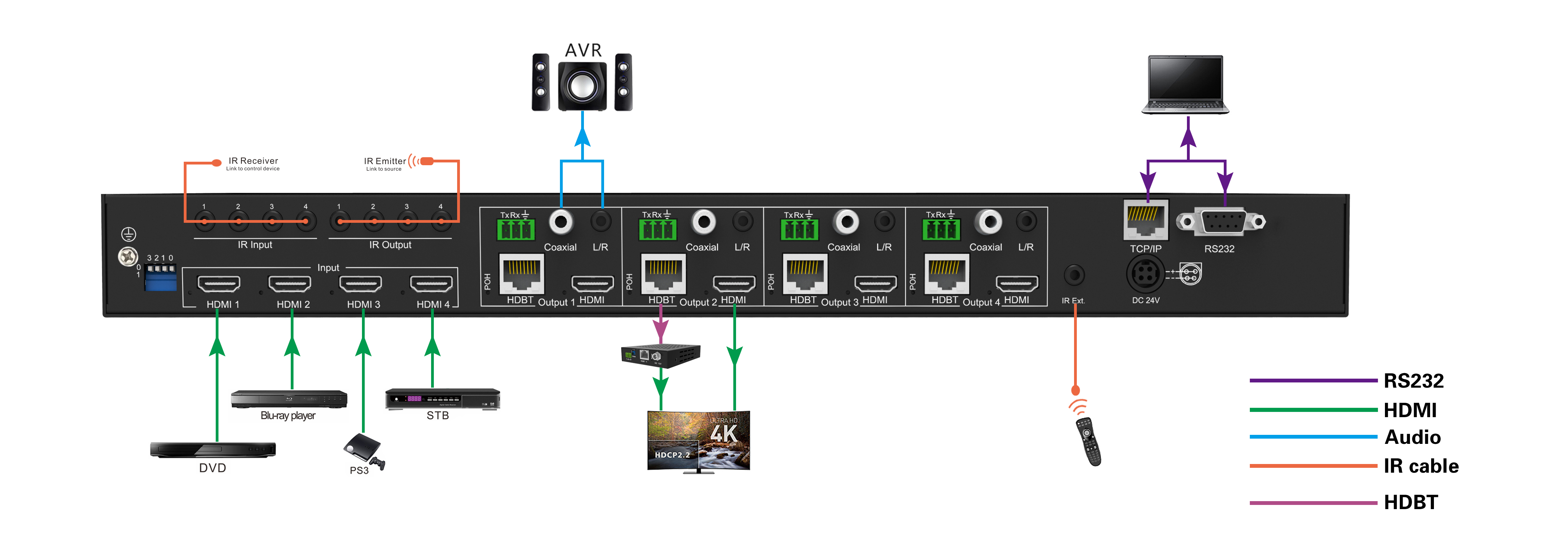

  • The MT0404-LP5 HDBaseT 4×4 Matrix for HDMI routes four Hi-Def sources to any four HDTV displays, supporting 1080p Full HD up to 4K@30Hz UHD plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Embedded audio extractors can extract the audio and output via L/R or Coaxial. Volume can be controlled for analogue audio out.  Based on HDBaseT Lite chipset inside, the output distance can reach up to 70m via Cat5e/Cat6. Each source can be routed to any display using the front-panel push buttons, IR remote control, RS-232 interface, or via TCP/IP.

    Features:
    • Supports resolutions up to 1080p@60Hz, 4K@30Hz, 36-bit deep color
    • HDBaseT Lite chipset inside for the output distance up to 70m.
    • Matrix can power the remote receivers, with POH, no power supply needed for the receivers.
    • Allows any source to be displayed on multiple displays at the same time
    • Allows any HDMI display to view any HDMI source at any time
    • Dolby TrueHD and DTS-HD master audio pass through HDMI output
    • Advanced EDID management for rapid integration of sources and displays
    • Front-panel LCD display for status feedback
    • Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP control
    • Easy installation with rack-mounting ears
    • Full 3D pass- through.
    • HDCP 2.2

  • • Bandwidth:2.97Gbps per color
    • Video Input Connectors: 4x HDMI Type A, 19-pin, female
    • Video Output Connectors: 4x HDMI Type A, 19-pin, female ,4x RJ-45 connector
    • RS-232 serial port: 1xDB-9, female, 4x3-pin phoenix connector,female
    • TCP/IP Control: RJ-45, female
    • IR Input ports: 5x 3.5mm stereo jack
    • IR Output ports: 4x 3.5mm stereo jack
    • Rack-Mountable: 1 U rack height, rack ears included
    • Dimensions (W x H x D): 428mm x 235mm x 43mm , without feet
    • Shipping Weight: 2.7kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 1x24V/3.5A DC
