Product details

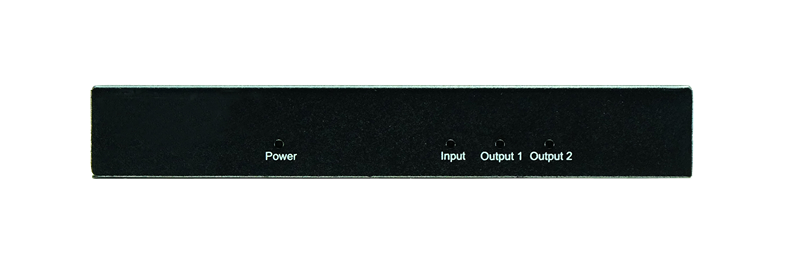

DA0102-DSA

• 1x2 HDMI splitter
• 1 HDMI output for pass through 1 HDMI output for downscaling output
• Analogue and digital audio breakout
• EDID management
• Compact design
• Plug and play

DA0102-DSA

• 1x2 HDMI splitter
• 1 HDMI output for pass through 1 HDMI output for downscaling output
• Analogue and digital audio breakout
• EDID management
• Compact design
• Plug and play

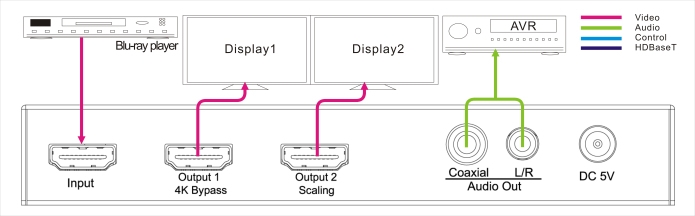

  • The DA0102-DSA HDMI 4K2K Splitter Scaler is designed to downscale a 4K2K signal to 1080p@60/50Hz or upscale a low resolution signal to 1080P@60/50Hz. The device features a single HDMI input and two simultaneous HDMI outputs, a ´Bypass´ output and a ´Scaling´ output. The Bypass output will always bypass the original signal, while the Scaling output will always downscale or upscale the original signal to 1080p. The HDMI 4K2K Splitter Scaler is an ideal solution for integrating a 4K2K source into a 1080p HD system.

    Features:
    • Supports HDMI signal downscaling from 4K2K to 1080p or upscaling from low resolution to 1080p
    • Supports HD resolutions of 1080p@60/50Hz
    • Supports 4K2K resolutions of 4096×2160p@24Hz and 3840×2160p@24/25/30Hz
    • Supports audio extract for both SPDIF and L/R outputs.
    • Supports EDID management
    • Simultaneous HDMI output

  • • Bandwidth: 2.97Gbps per color
    • Video Input Connectors: 1x HDMI Type A, 19-pin, female
    • Video Output Connectors: 2x HDMI Type A, 19-pin, female
    • Audio Output Connectors: 1x RCA(SPDIF), 1x 3.5mm stereo jack (L/R)
    • EDID: 4-PIN DIP Switch
    • Rack-Mountable : Rack ears included
    • Dimensions(W x D x H): 150mm x 70mm x 23mm, without feet
    • Shipping Weight :: 0.3KG
    • Operating Temperature:32°F to 104°F (0°C to 40°C)
    • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
    • Power Supply: 1x 5V/2A DC
