Product details

ET0101-VF1/VF2

• HDMI over Cat 5e/6 HDBaseT extender
• 100m transmission distance
• Bi-directional IR, RS232, POH
• Ethernet pass-through

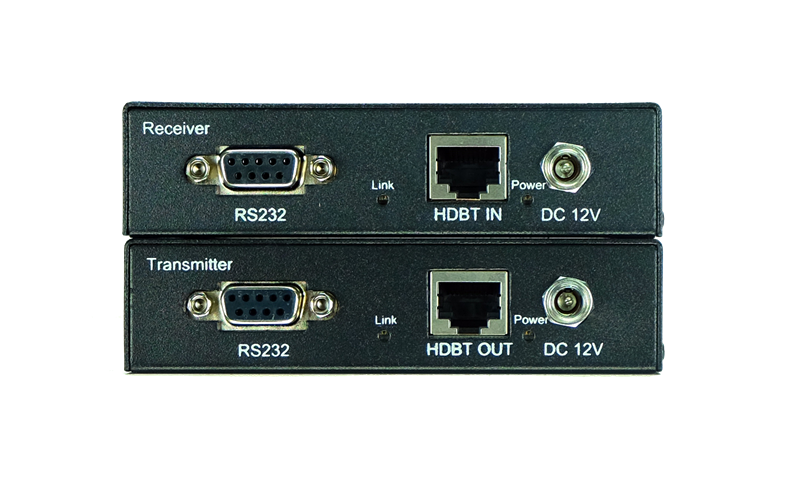

ET0101-VF1/VF2

• HDMI over Cat 5e/6 HDBaseT extender
• 100m transmission distance
• Bi-directional IR, RS232, POH
• Ethernet pass-through

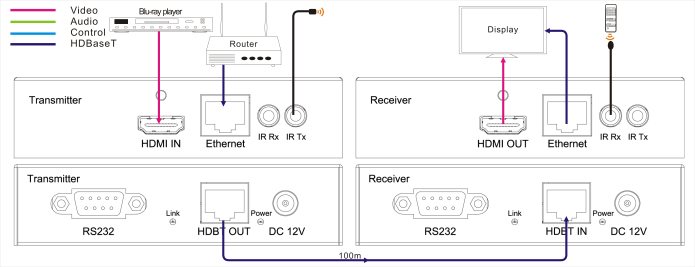

  • Tonlyware’s ET0101-VF1 (Transmitter)/ET0101-VF2 (Receiver) is a 100m (330ft) HDBaseT Extender. It transmits 1080P@60HZ at 48bit deep color via single Cat5e up to 100 meters (330ft) and 4K to 70 meters (230ft). Bi-directional IR, RS232 and Ethernet can also be transmitted over the same Cat5e cable. With support of POH (power over HDBaseT), only one power supply is needed at either transmitter or receiver.

    Features

    • HDMI v1.4 and HDCP compliant, support 1080p@60Hz, 3D and 4Kx2K.
    • Support 1080P@60Hz or VESA: 1920x1200@60Hz up to 100m (330ft).
    • Transmission distance for 4Kx2K@30Hz up to 70m (230ft).
    • Dolby TrueHD and DTS-HD master audio pass through HDMI output
    • Bi-Directional IR, RS232 and Ethernet pass through.
    • Power over HDBaseT supported, only one power supply needed at either transmitter or receiver side.
    • With ESD Protection.

  • • Bandwidth:2.97Gbps per color
    • Video Input Connectors TX: 1 x HDMI Type A, 19-pin, female,
    • Video Input Connectors RX: 1x RJ-45
    • Video Output Connectors TX: 1x RJ-45
    • Video Output Connectors RX: 1 x HDMI Type A, 19-pin, female
    • RS-232 serial port TX and RX: DB-9, female
    • IR Input ports: 2x 3.5mm stereo jack, TX and RX
    • IR Output ports: 2x 3.5mm stereo jack, TX and RX
    • Ethernet ports: 1x RJ-45, TX and RX
    • Dimensions (W x H x D): 109mm x 104mm x 27mm , without feet
    • Shipping Weight: 300g each
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 12V/2A DC
